Pulse Rollers
SENERGY / SENERGY Ai
*Rated torque and rated tangential force of BOOST-8 are the same values as BOOST.
*BOOST-8 performance is available with EZ-24HTB and ConveyLinx HTF card only.
Optional Spec. - Wash Down Rated
Optional Spec. - Built In Brake
Optional Spec. - Freezer Rated
Senergy / Senergy Ai Part Number Definition
PALLET ROLLER / PALLET ROLLER Ai
*Control: EZ-24HTB or ConveyLinxHTF
*Control: EZ-24HTB or ConveyLinxHTF

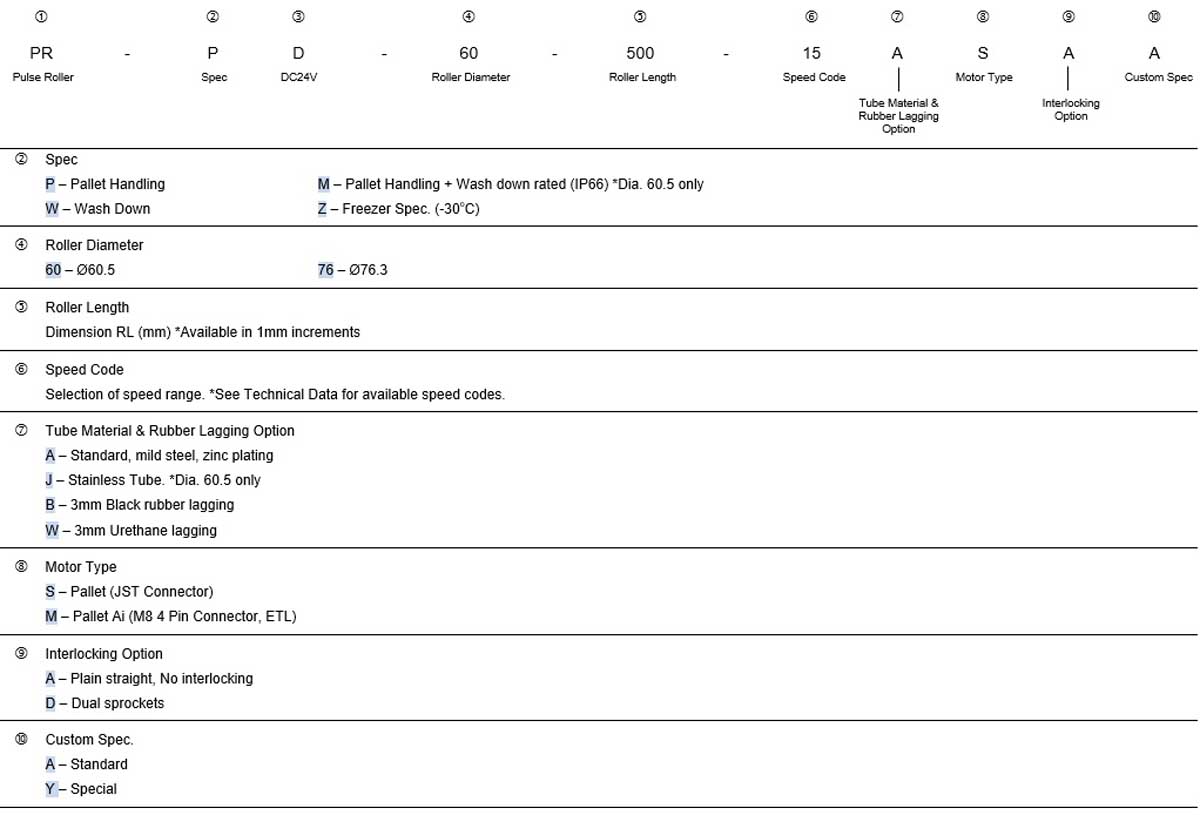

Pallet Roller / Pallet Roler Ai Part Number Definition
PULSE GEARED DRIVE / PULSE GEARED DRIVE Ai
*Rated torque and rated tangential force of BOOST-8 are the same values as BOOST.
*BOOST-8 performance is available with EZ-24HTB and ConveyLinx HTF card only.
Pulse Geared Drive / Pulse Geared Drive Ai Part Number Definition
CALCULATION OF MOTOR ROLLER CAPABILITY
Required Tangential Force
F(N) = m x g x µ
Where:
F – Required tangential force
m – Mass (kg)
g – Gravitational accelaration 9.8m/s2
µ – Coefficient of friction
---Example---
Weight of the product --- 50 kg
Material of the product --- Cardboard (μ=0.1, maximum)
Conveyor speed --- 40m/min
F = 50 x 9.8 x 0.1 = 49N
The model which can operate at 40m/min is;
PR-AD-50-500-35ZSAA (SENERGY, Diameter: 50mm, Speed code35 - Eco mode)
Starting tangential force: 274.3N
Since its tangential force exceeds the required tangential force (274.3 > 49), the selected model is considered to be capable to handle 50 kg cardboard.
Note: please include adequate value of safety factor for the actual calculation of required tangential force. The required tangential force varies depending on various conditions.
Power Loss (in general) When Interlocking with Idler Rollers
This is a very important factor when selecting a model for applications.
As the table below shows that the capability (Tangential force) of PULSE ROLLER decreases when interlocking with idler rollers using rubber belts.
SENERGY - ECO Mode
SENERGY - BOOST Mode
